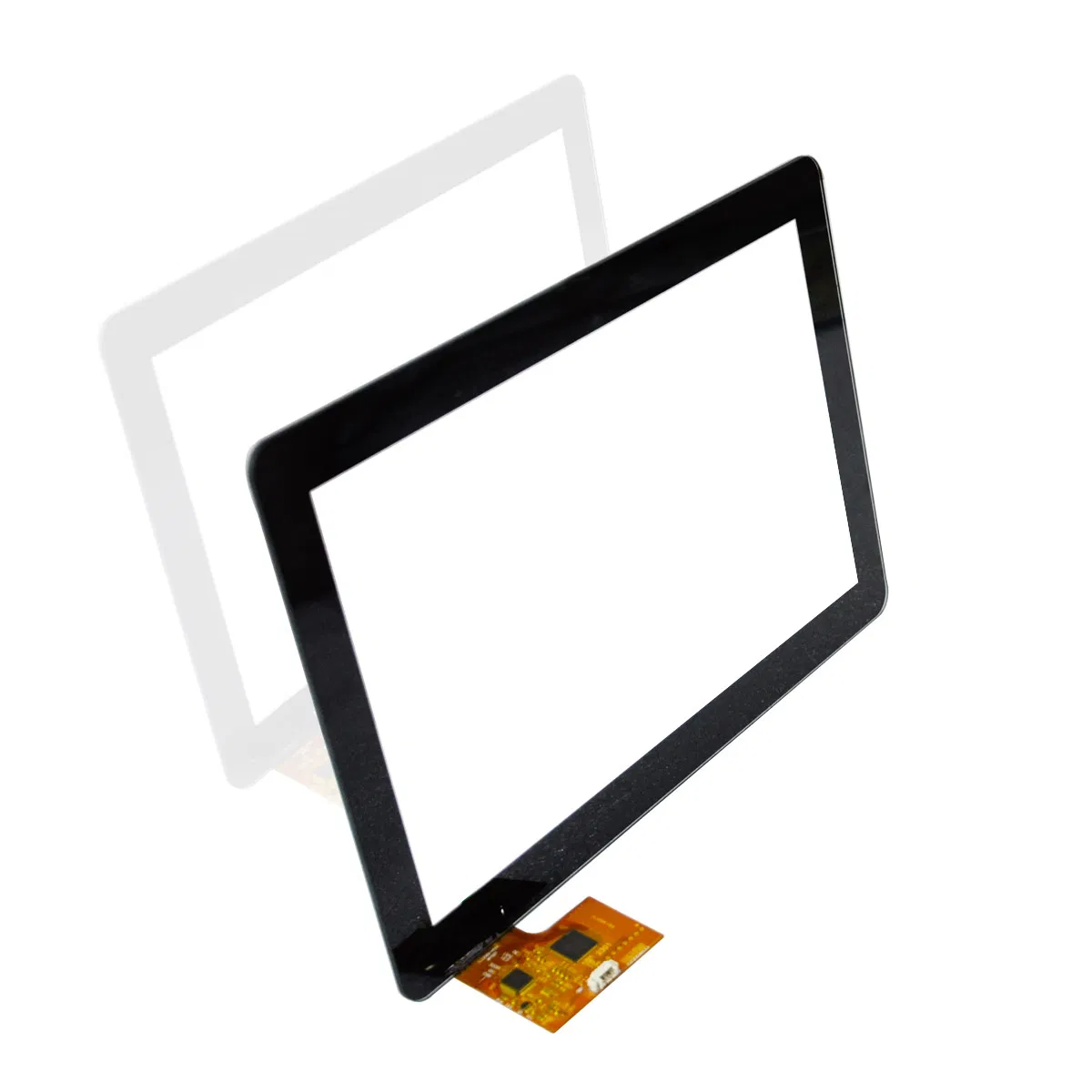

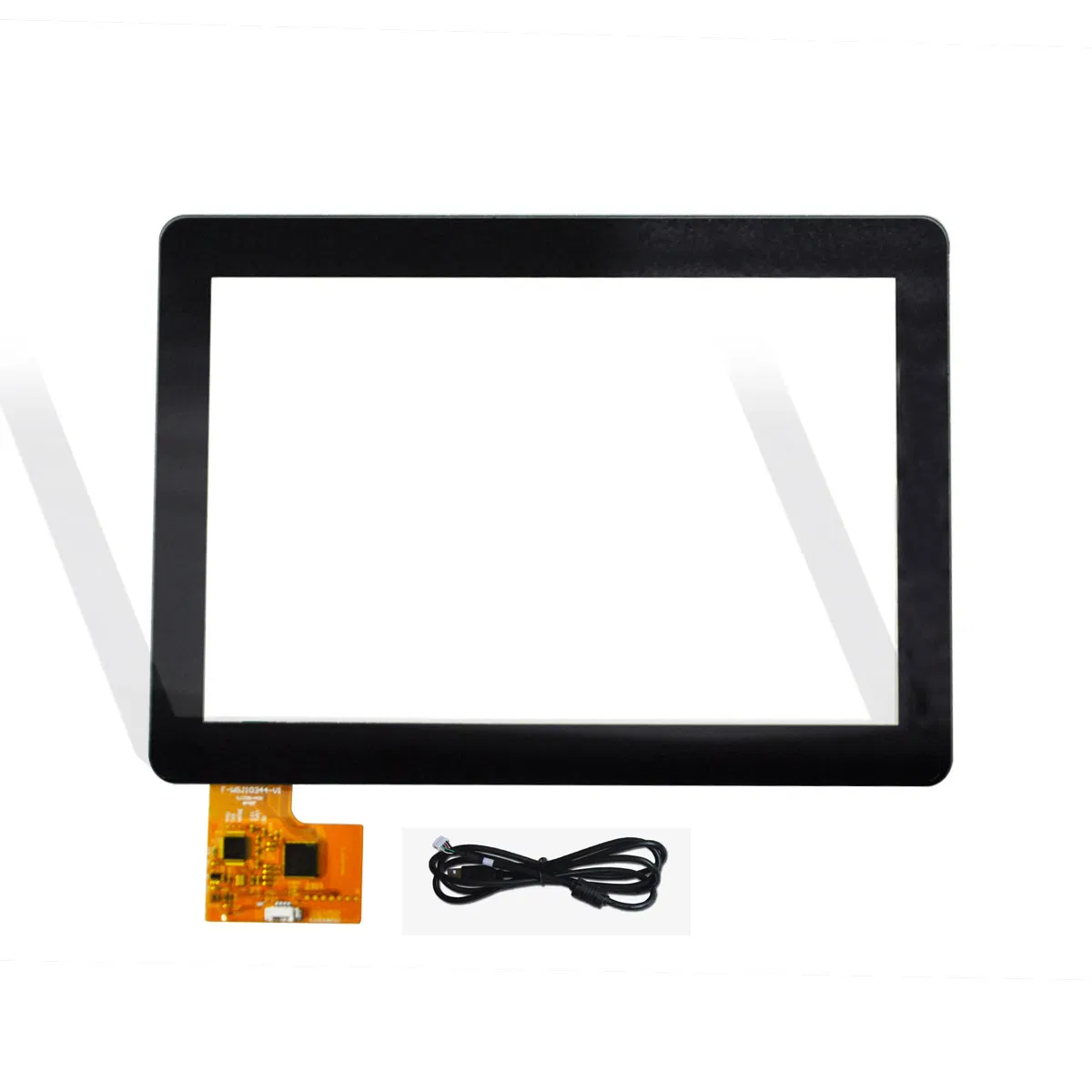

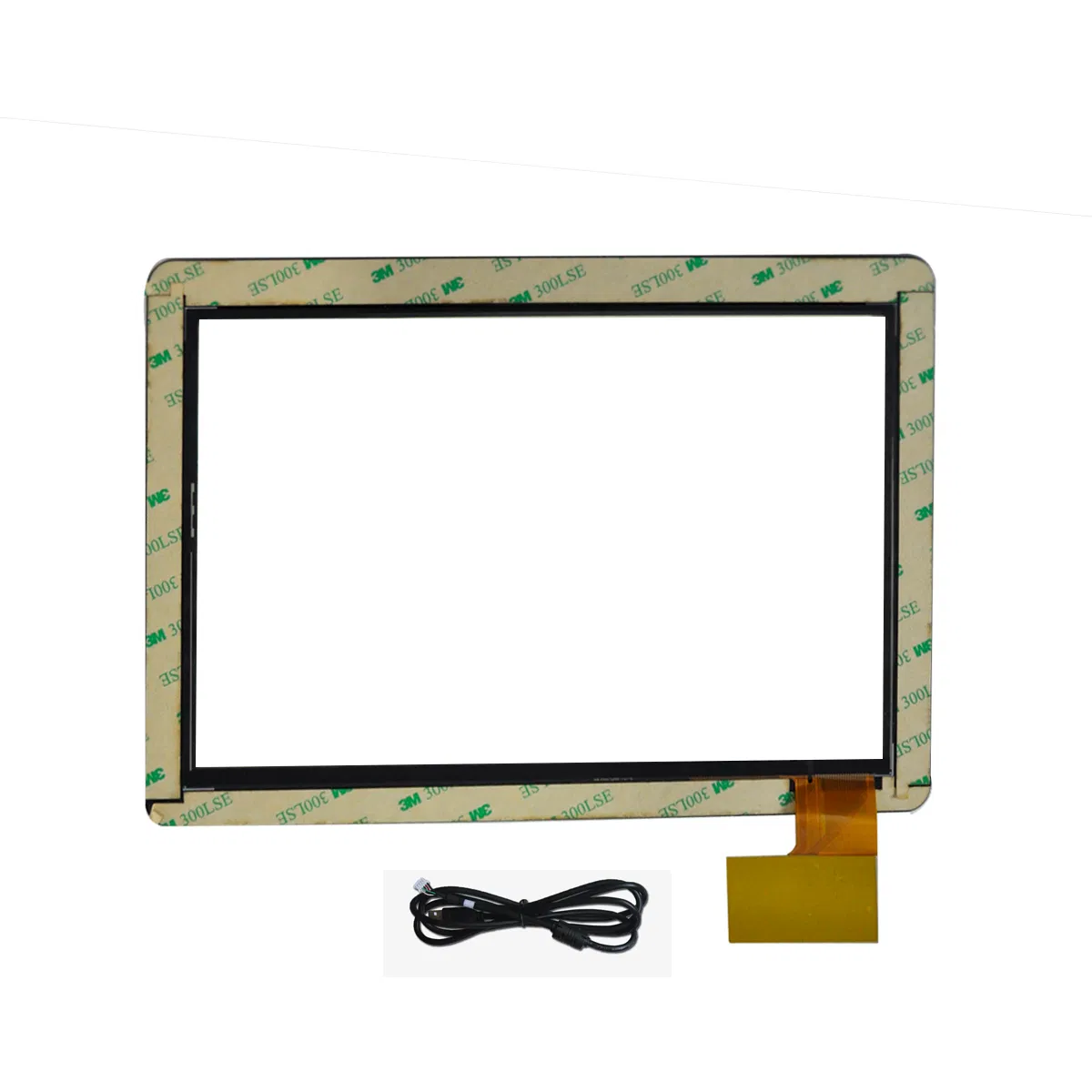

32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
1 / 5
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel
32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel

32 Inch Pcap Touch Screen Custom Size Pcap 32 Inch Capacitive Touch Panel, Capacitive Touch Screen Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Information
Model:
CPI320T00-3K-C00
Application:
Game Entertainment System
Screen Type:
Capacitive
Technology:
Pcap Touch Screen
Resolution:
4096*4096
Multi-Touch:
10 Touch Points
Material:
Glass (Vandal-Proof, Anti-Glare Optional)
Capacity:
500 Pieces/Day
Product Description

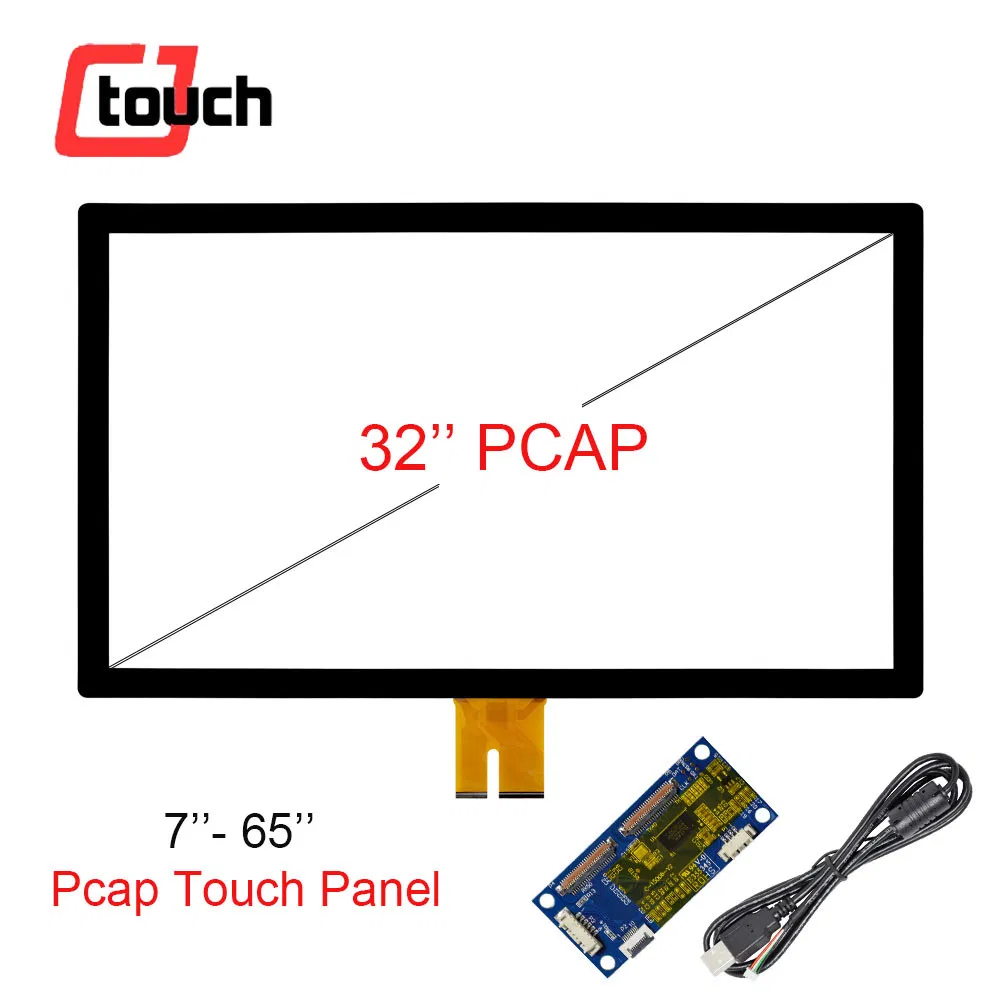

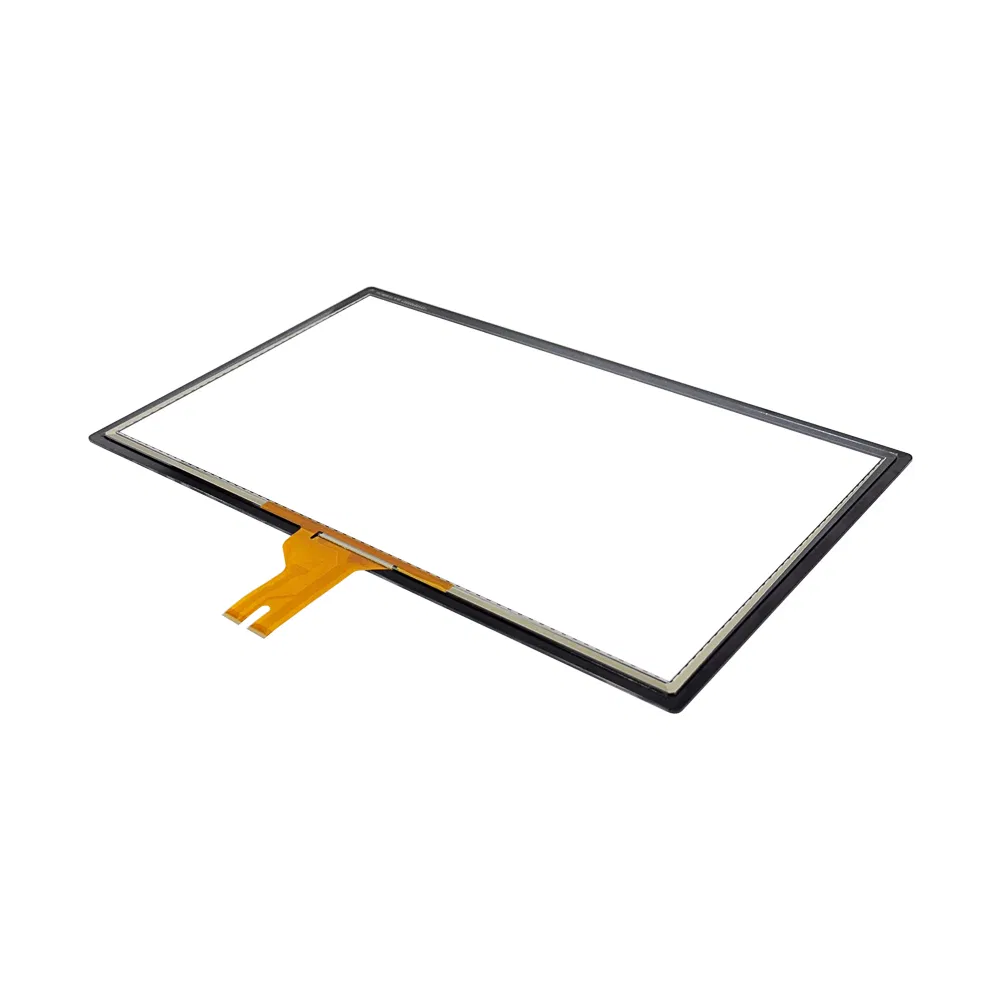

32 Inch Pcap Touch Screen

Multi Touch Capacitive Screen Panel 32 Inch Pcap Touch Screen for TFT LCD

PCAP touch screen detects the touch position through the change in capacitance between electrodes. When a finger or conductive stylus approaches the surface of the touch panel, it distorts the local electrostatic field at that point. The position is then pinpointed through capacitance change by the controller and firmware combination.

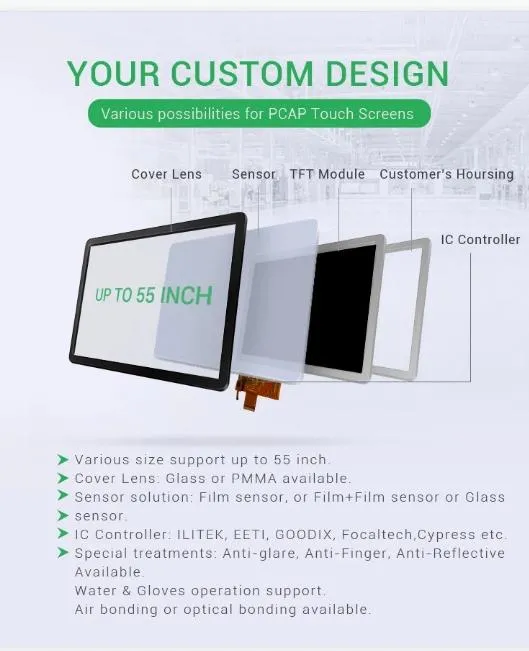

Pcap Detail 1 Pcap Detail 2
Key Features
  • Sizes from 5" - 110", Support Custom made
  • 5 / 10 Points touch - USB / RS232 / IIC interface
  • EETI / ILITEK / SIS Controller Board Support
  • 1.8/2/3/4/6/8mm Tempered Touch Glass
  • Outdoor Industrial Waterproof & Vandalproof
  • High durability and Excellent optical performance
  • OS Support: Windows, Linux, Android, Mac OS, Raspberry Pi

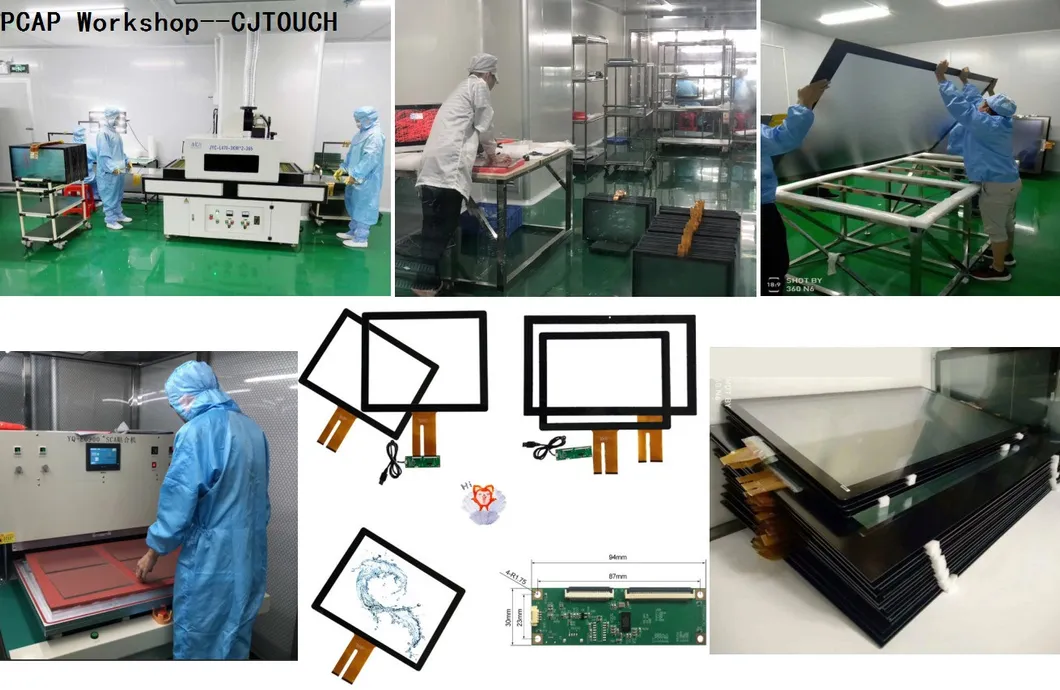

Pcap Working Principle
Technical Specifications
Technical Specification
TypeProjected touch panel
InterfaceUSB
Touch Points10 Points
Input Voltage5V
Transmittance>90%
Surface Hardness≥6H
Working Temp-10~+60ºC
Ball Drop Test130g±2g, 35cm, No damage
Other Touch Technology Solutions

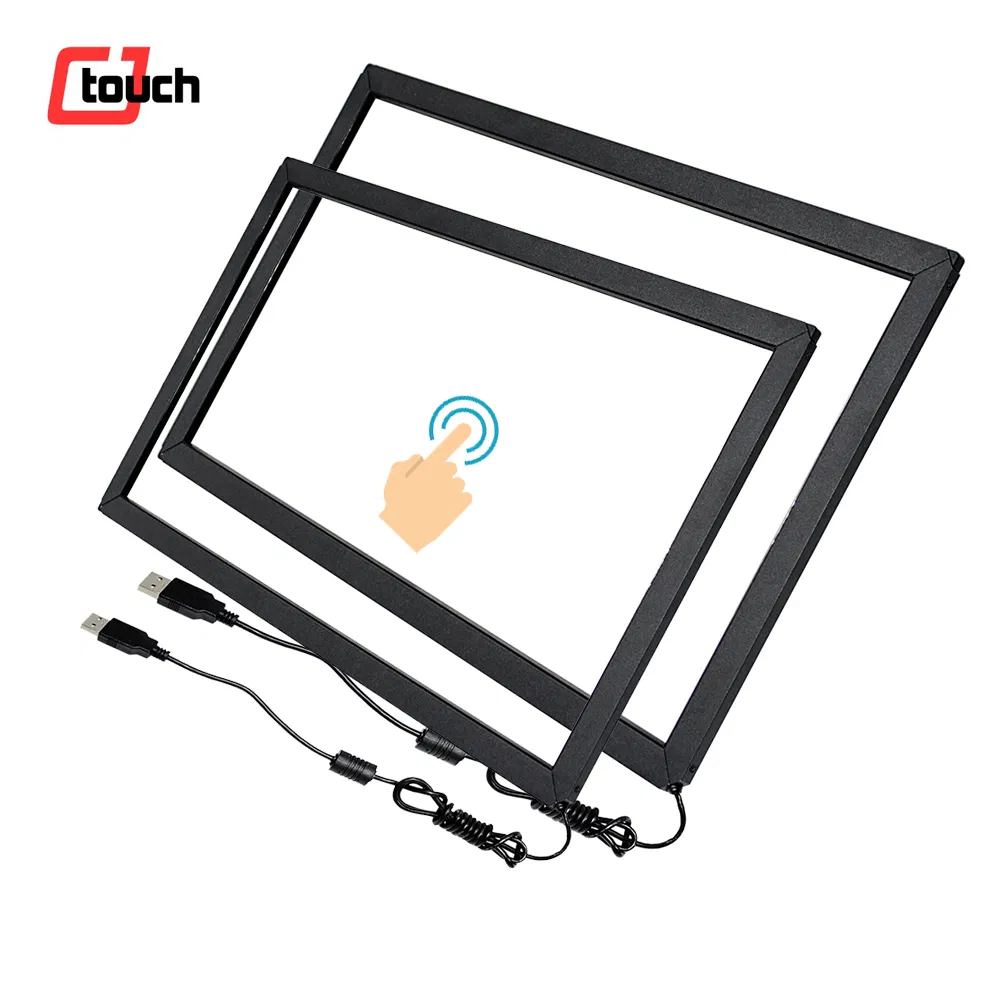

IR Touch Screen

IR Touch Screen

  • 10.4 - 300'', Custom-Make Supported
  • ELO/3M Compatible USB+RS232 Port
  • Vandalproof, Waterproof, Anti Glare

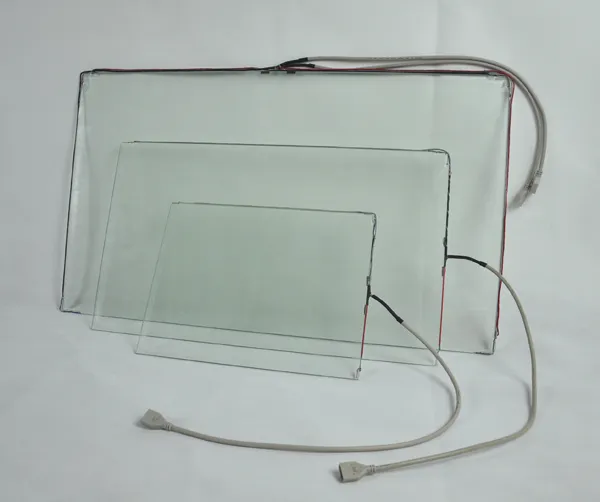

SAW Touch Screen

SAW Touch Screen

  • 7- 32'', High Clarity
  • 3/4/6mm Tempered Touch Glass
  • Dustproof & Anti-Glare
Application Fields
  • ATM Kiosk / Hotel / KTV / TV
  • Industrial Control / Public Inquiry / Bar
  • Medical Equipment / Hospitality / Meeting
  • Transport and Ticketing / Banking

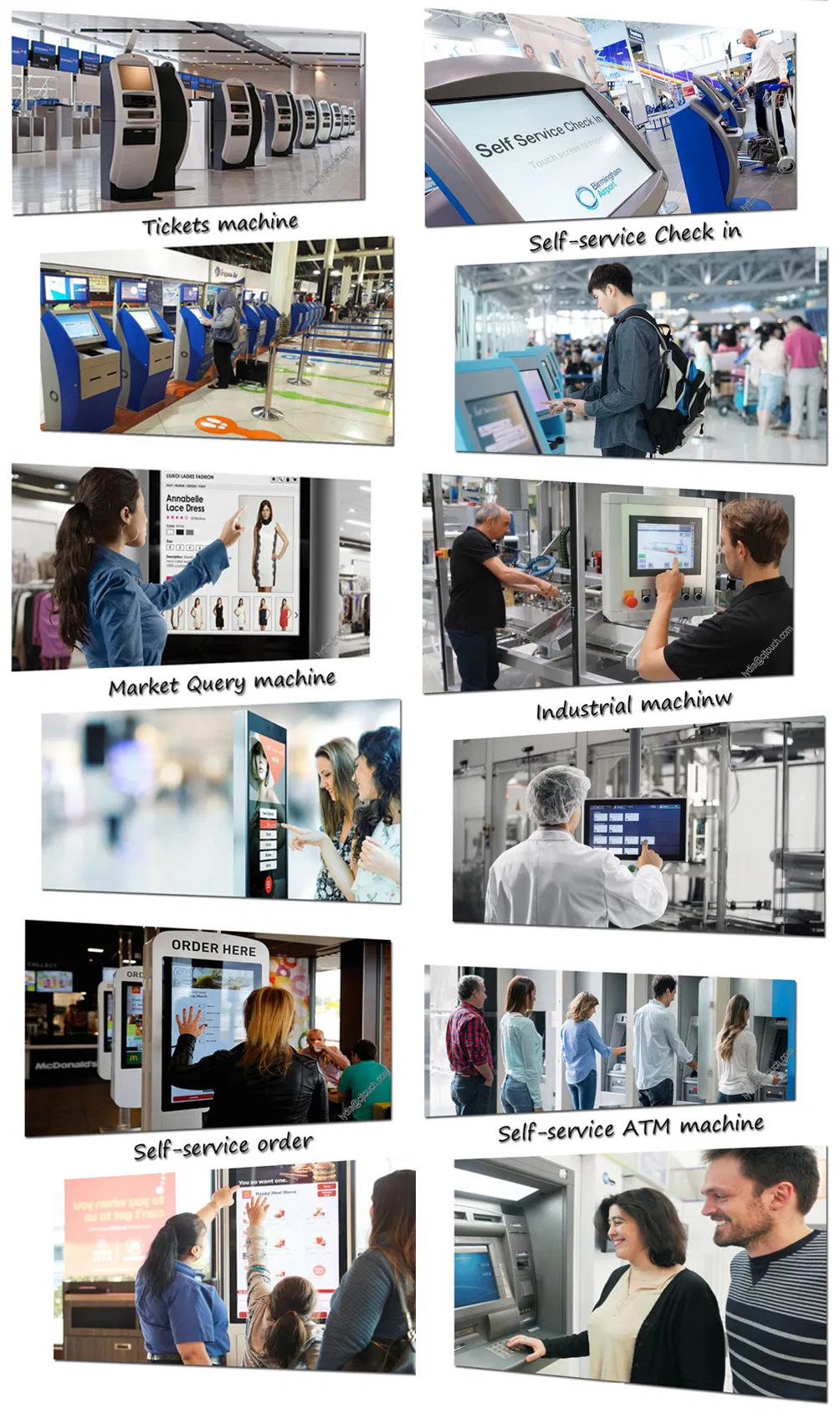

Application fields
Packaging & Shipping

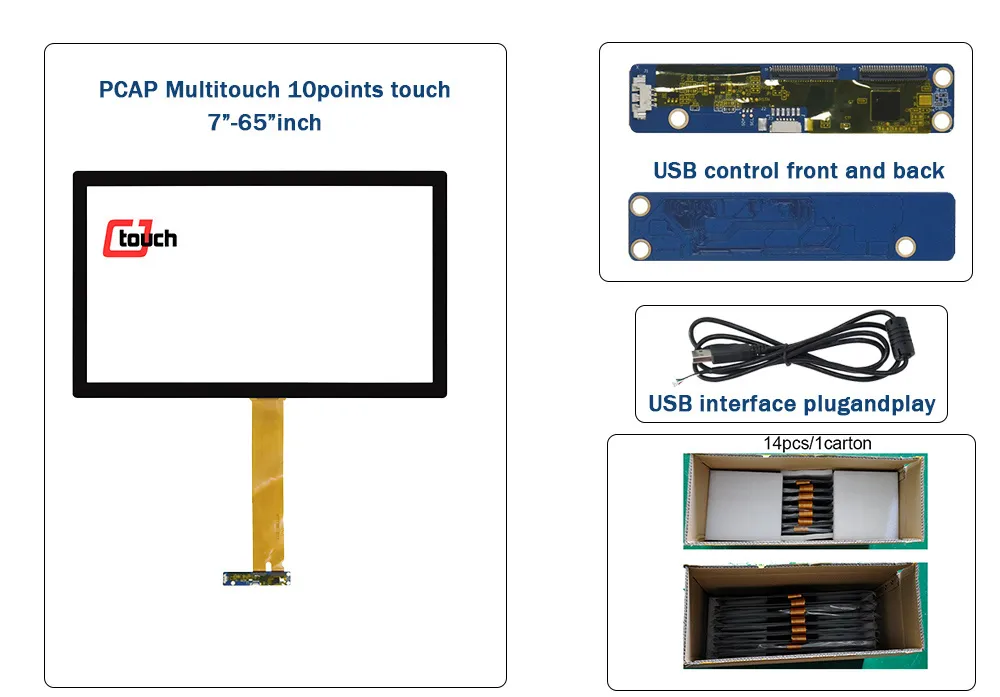

Packing details
Frequently Asked Questions
Q1: What is the maximum size available for PCAP touch screens? We support customized sizes ranging from 5 inches up to 110 inches.
Q2: Does the touch screen work through extra cover glass? Yes, our projected capacitive technology supports adding normal glass on top for additional protection while maintaining touch functionality.
Q3: Which operating systems are compatible? The panels are plug-and-play for Windows 7/8/10, Android, Linux, Mac OS, and Raspberry Pi.
Q4: Can I use the screen in outdoor or industrial environments? Absolutely. We offer waterproof, vandalproof, and anti-glare solutions specifically designed for industrial and outdoor use.
Q5: How many touch points does the 32-inch model support? The standard model supports 10-point multi-touch, allowing for gestures like pinch and rotate.
Q6: What certifications do your touch products have? Our products meet international standards including CE, FCC, RoHS, ISO9001, and ISO14001.
