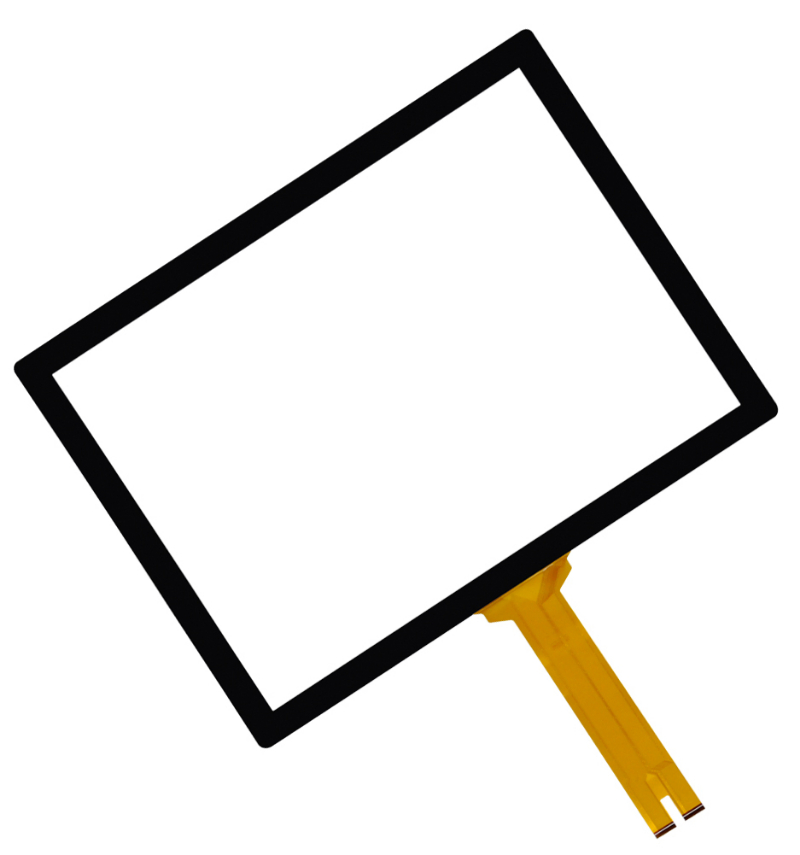

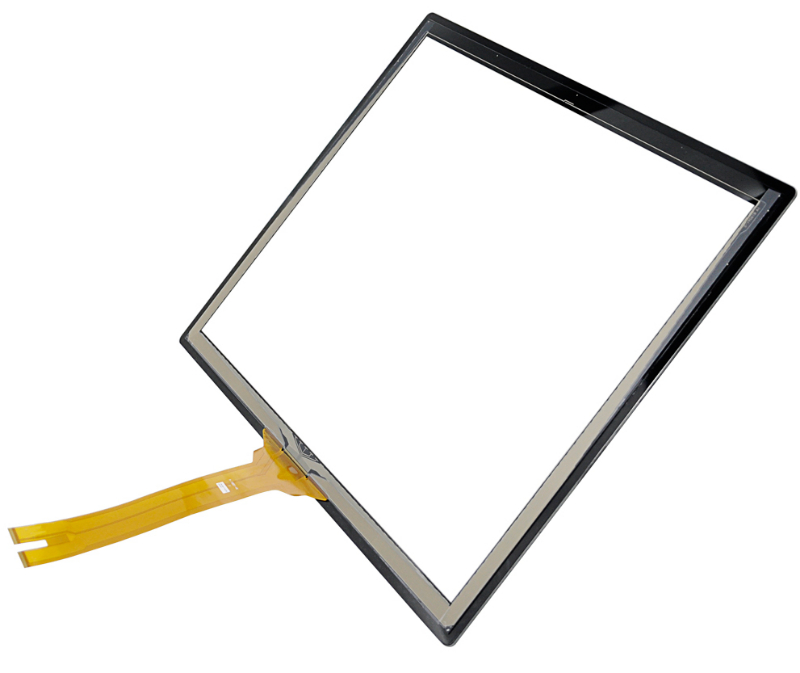

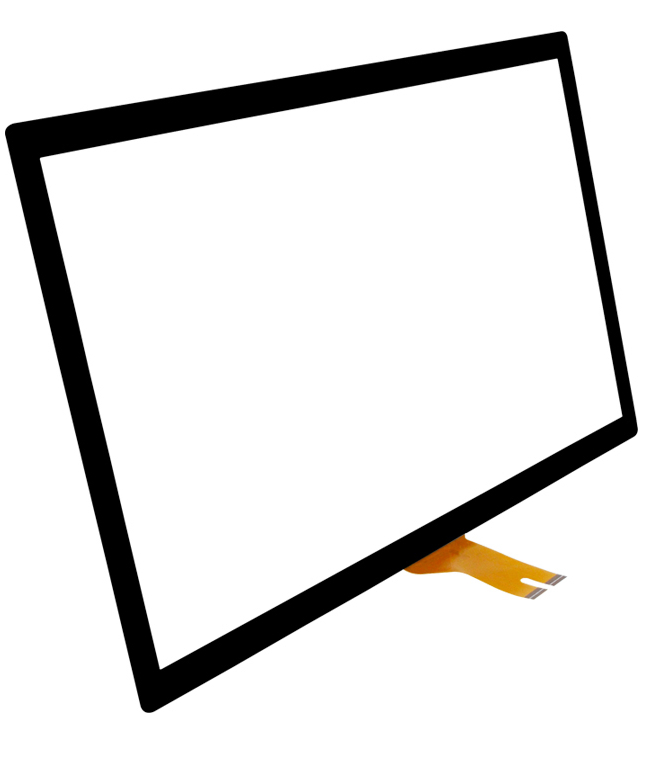

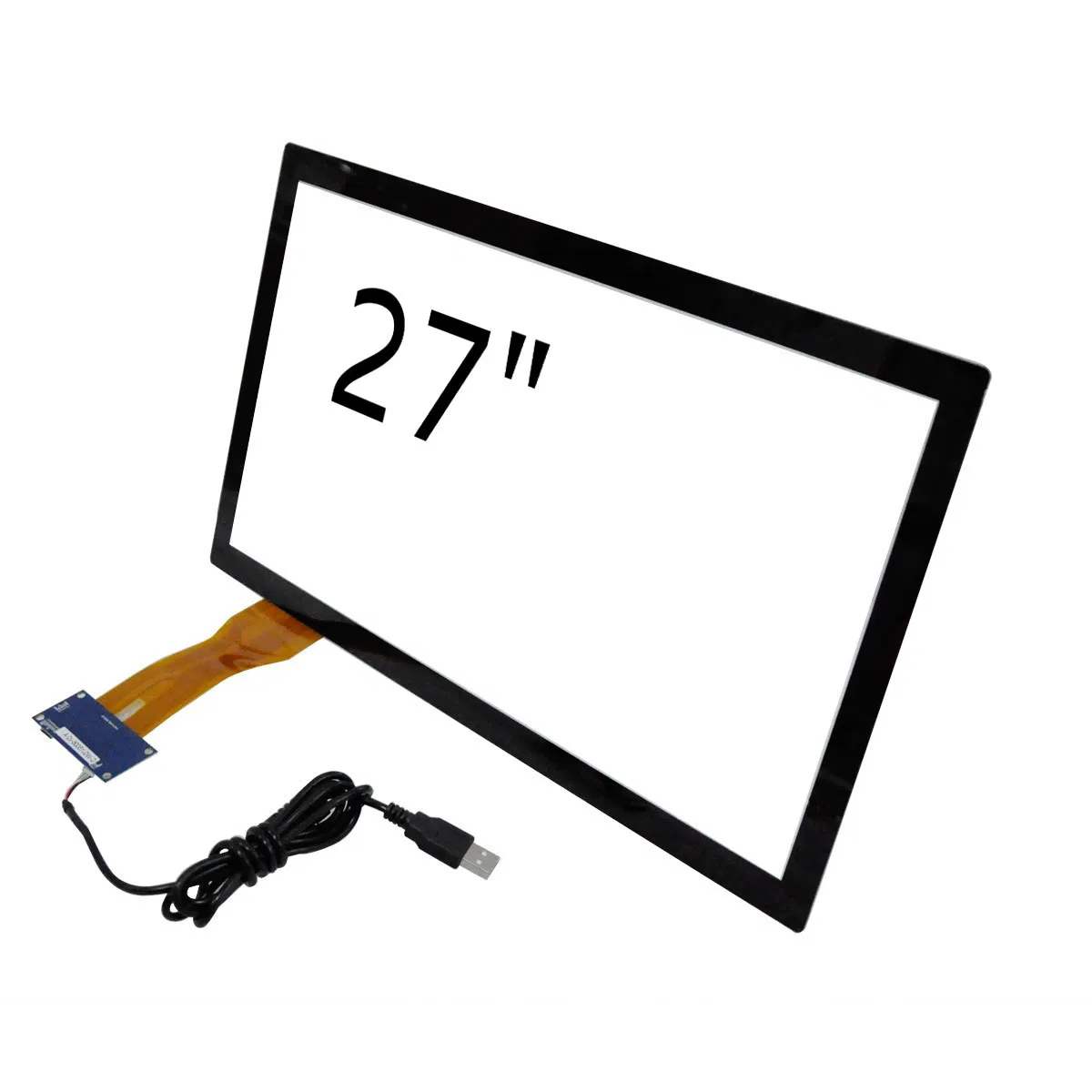

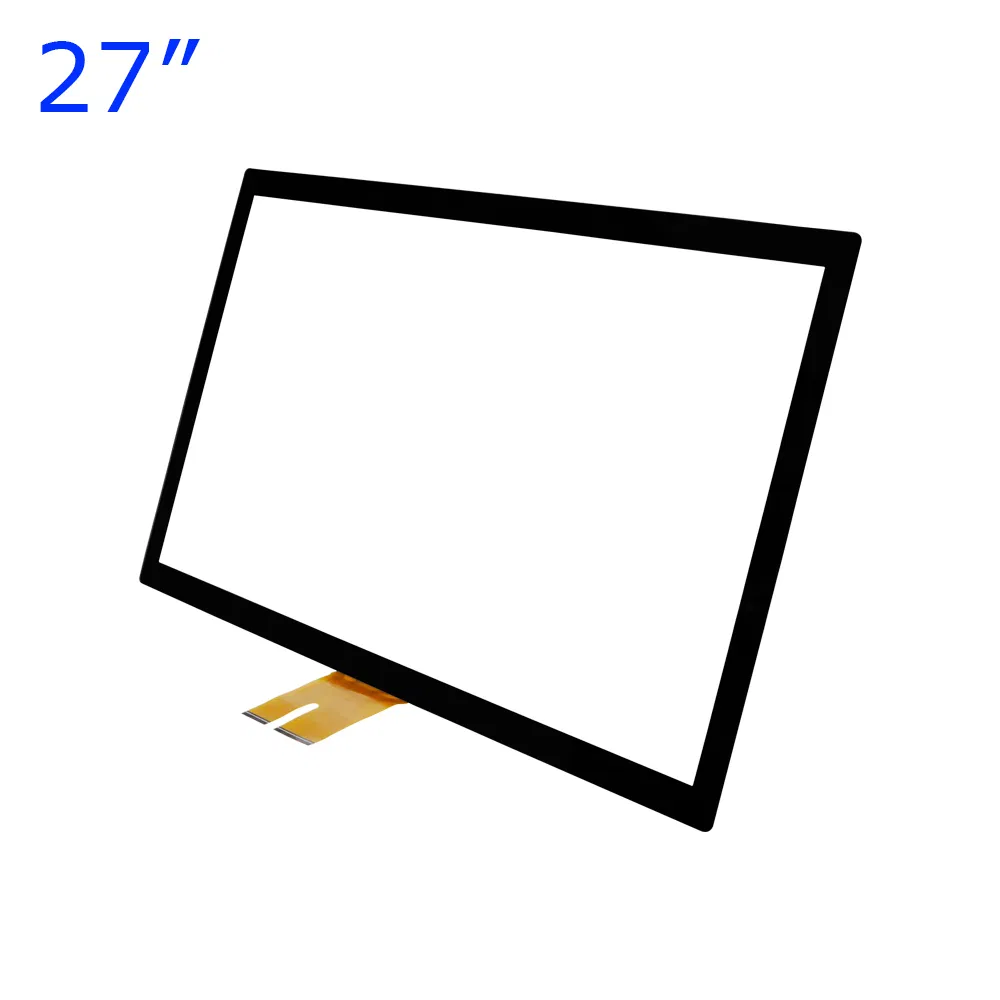

27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
1 / 5
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel
27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel

27" Pcap Touch Screen Capacitive Touch Panel, Capacitive Touch Screen Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.CPI270T00-3K-C00
ApplicationGame Entertainment System
Screen TypeCapacitive
TechnologyPcap Touch Screen
Resolution4096*4096
Multi-Touch10 Touch Points
MaterialGlass (Vandal-Proof Optional)
Capacity500 Pieces/Day
Product Description
Pcap Touch Screen

PCAP touch screen detects the touch position through the change in capacitance between electrodes. When a finger or conductive stylus approaches the surface, it distorts the local electrostatic field. The position is pinpointed through capacitance change by the controller and firmware combination.

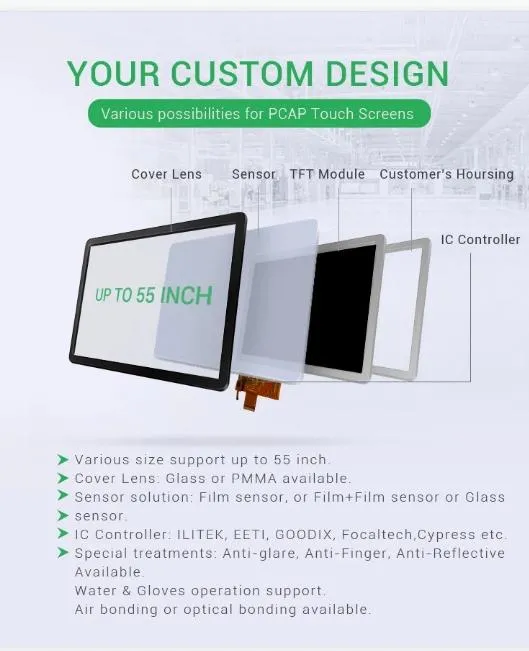

Touch Panel Detail Touch Screen View
Key Features
  • Support Custom-made sizes from 5" to 110"
  • 10 Points Multi-touch with USB/RS232/IIC interface
  • EETI / ILITEK / SIS Controller Boards available
  • 1.8mm to 8mm Tempered Touch Glass options
  • Outdoor Industrial Waterproof and Vandalproof design
  • Compatible with Windows, Linux, Android, macOS, Raspberry Pi
  • Excellent optical performance with high transmissivity

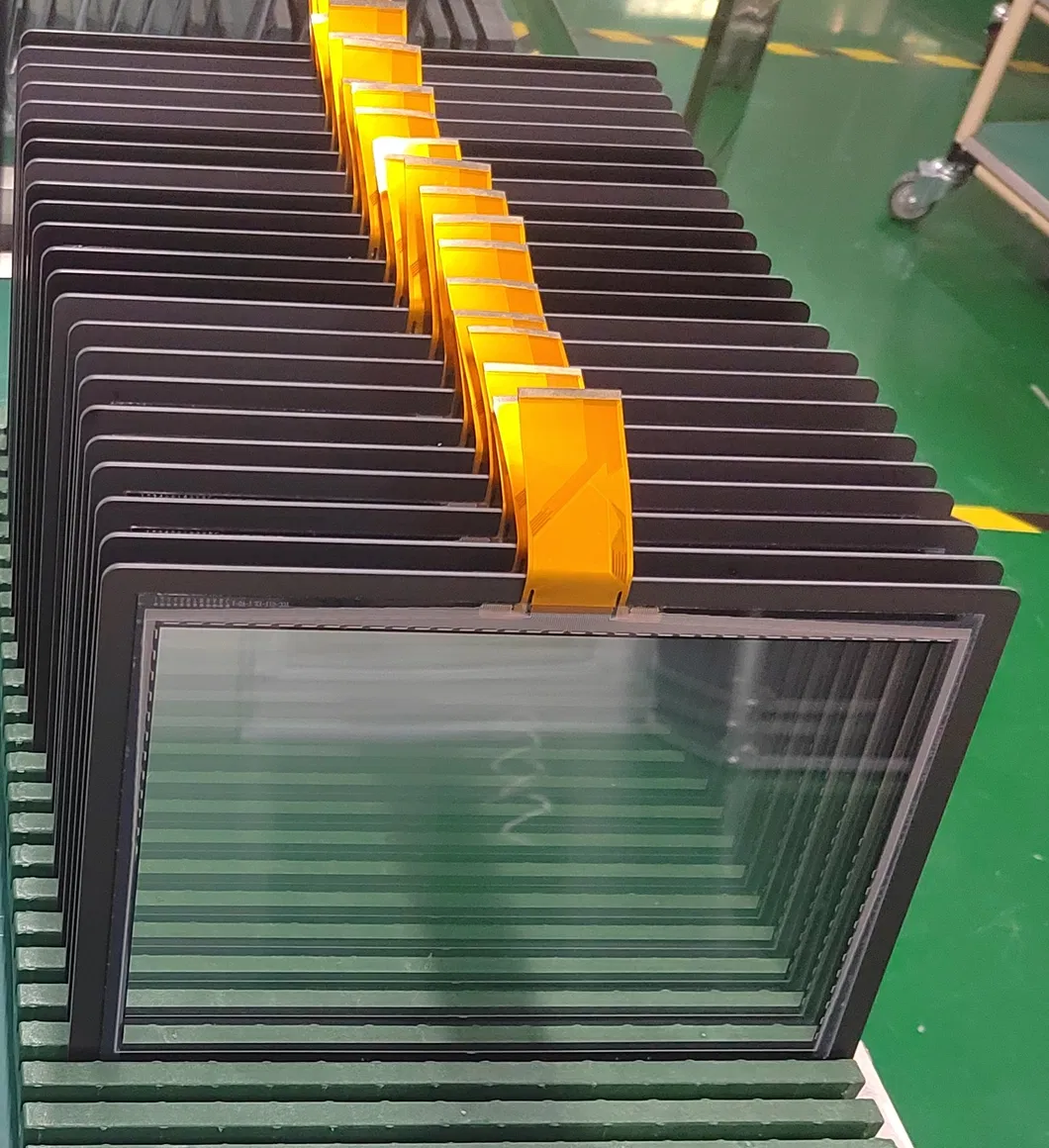

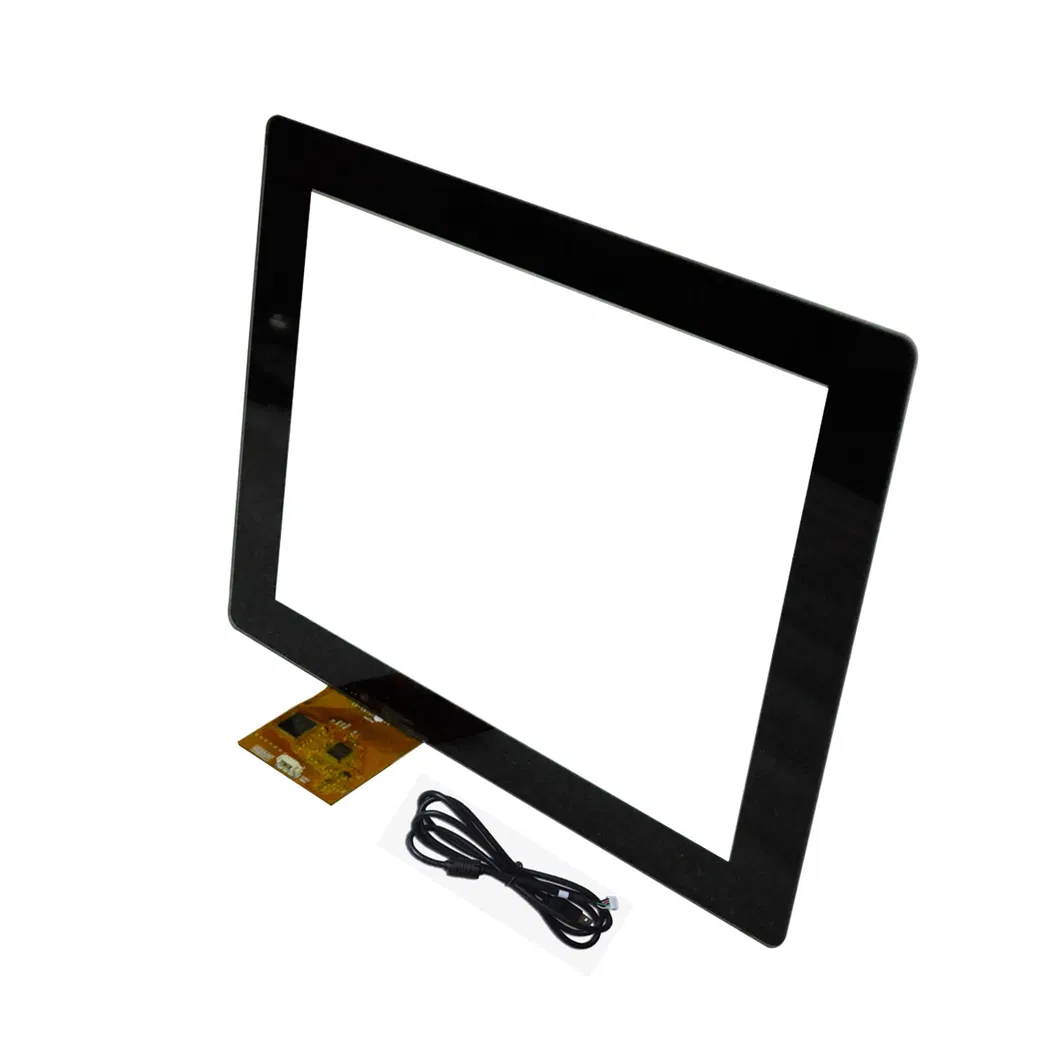

Pcap Application Industrial Touch Screen
Technical Specifications
Parameter Detail
TypeProjected touch panel
InterfaceUSB
Touch Points10
Input Voltage5V
Transmittance>90%
Surface Hardness≥6H
Operating Temp-10~+60ºC, 20~85% RH
Storage Temp-10~+65ºC, 20~85% RH

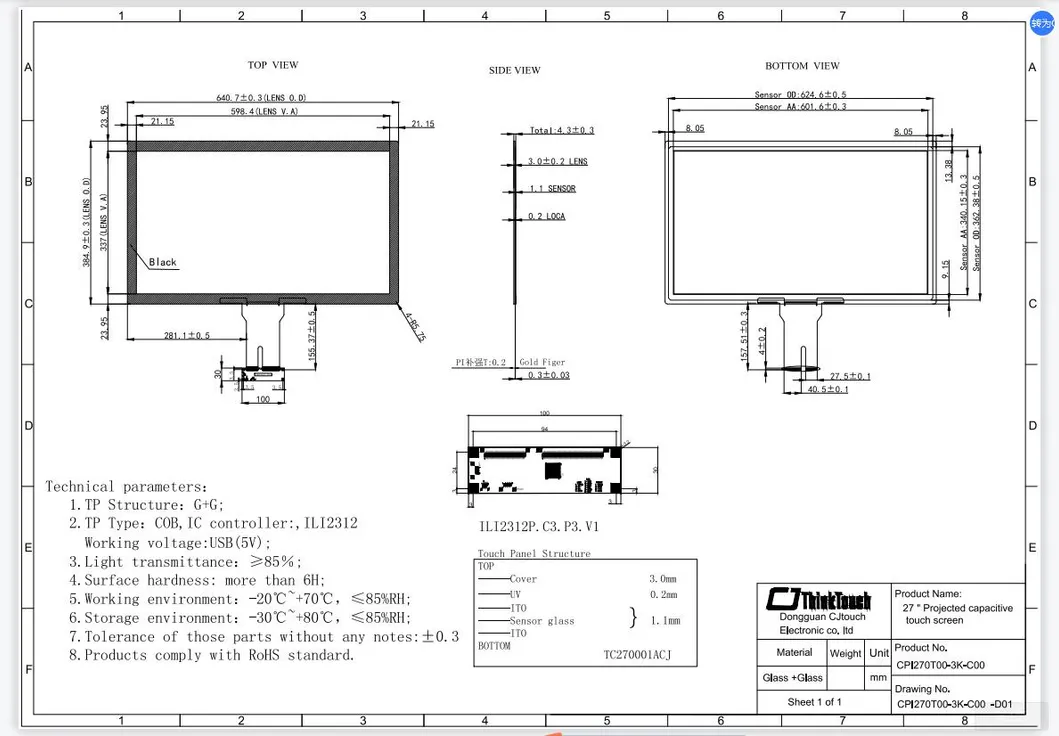

Product Drawings
Other Touch Solutions

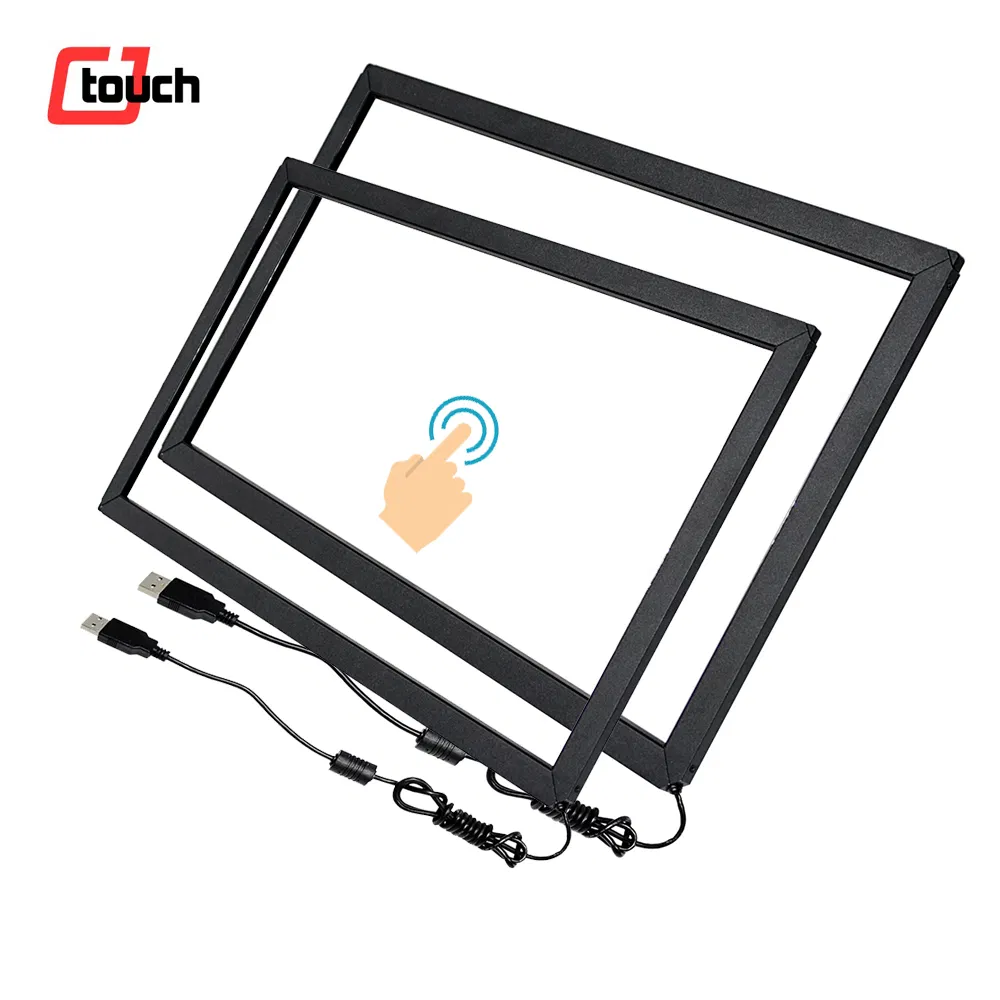

IR Touch Screen

  • 10.4" - 300" sizes
  • Vandalproof & Waterproof
  • Plug and Play, Free Driver

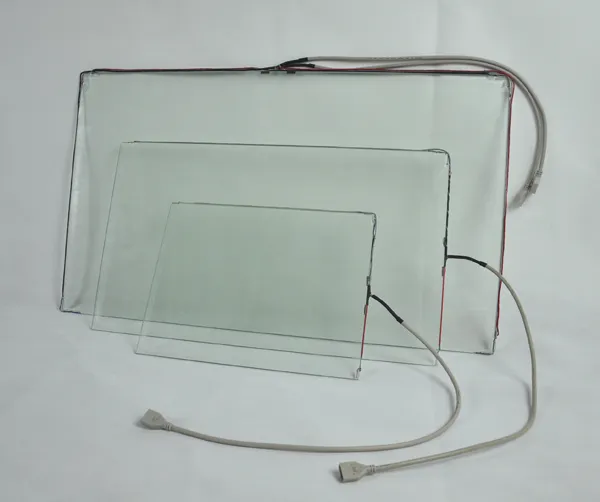

SAW Touch Screen

  • 7" - 32" sizes
  • 3/4/6mm Tempered Glass
  • High Durability

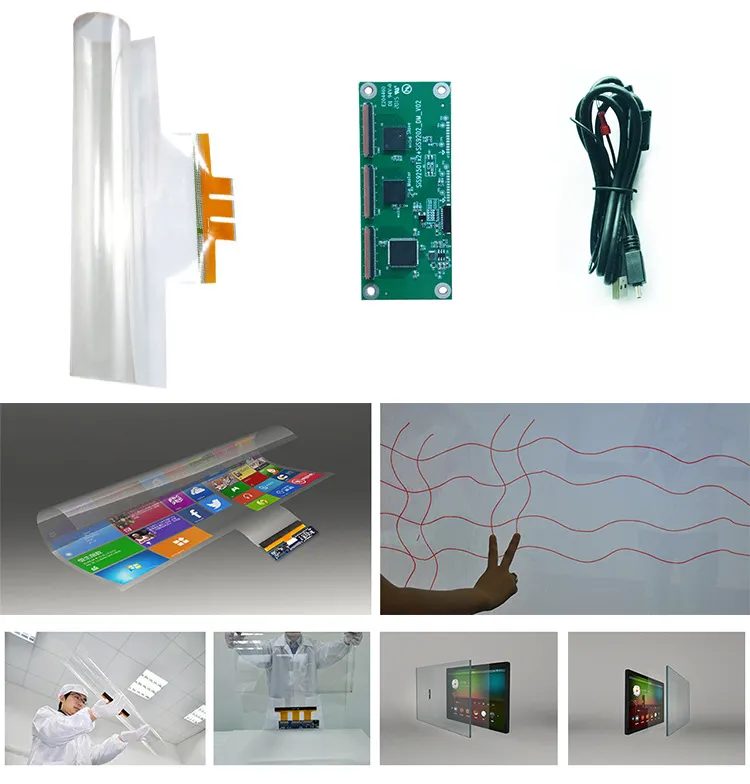

IR Touch SAW Touch Touch Foil
Application Fields

🔹 Banking & Finance: ATM Kiosks, Ticketing Machines

🔹 Healthcare: Medical Equipment, Patient Terminals

🔹 Hospitality: Hotel/KTV Check-in, Restaurant POS

🔹 Public Info: Industrial Control, Inquiry Kiosks, Smart Whiteboards

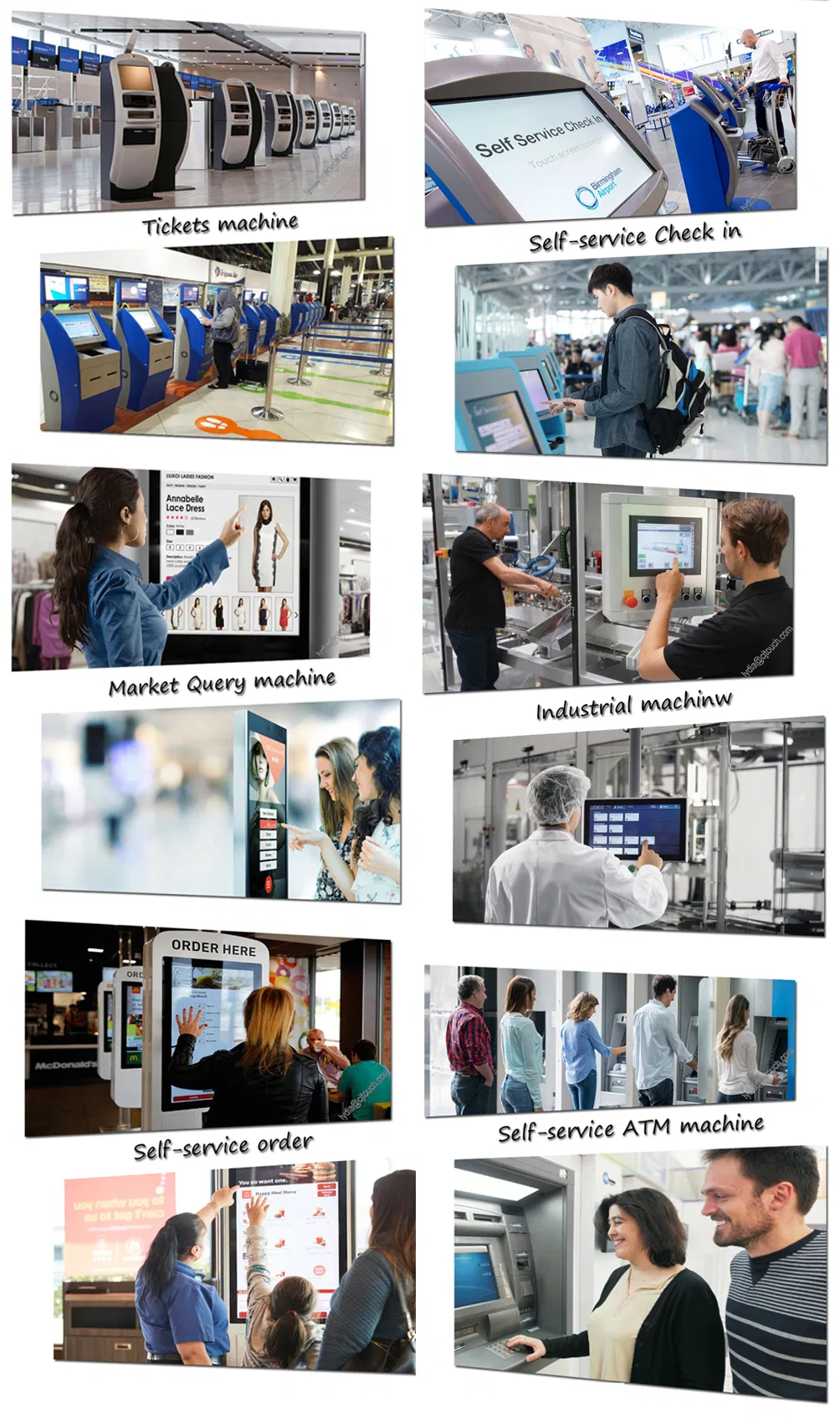

Applications
Frequently Asked Questions
Q: What operating systems are compatible with the PCAP touch screens? A: Our touch screens support Windows, Android, Linux, macOS, and Raspberry Pi.
Q: Can I get a customized size for my project? A: Yes, we provide customization for sizes ranging from 5 inches up to 110 inches.
Q: Is the touch screen glass durable enough for public use? A: Yes, we use tempered glass with a hardness of ≥6H, and offer vandal-proof and anti-glare options.
Q: Does the touch screen require special drivers? A: Most models are plug-and-play (HID compatible) for standard operating systems, requiring no extra drivers.
Q: What is the lead time for standard products? A: Regular types usually have a lead time of less than 2 days depending on stock levels.
Q: Can these screens be used outdoors? A: Yes, we provide industrial-grade waterproof and sunlight-readable solutions for outdoor environments.
