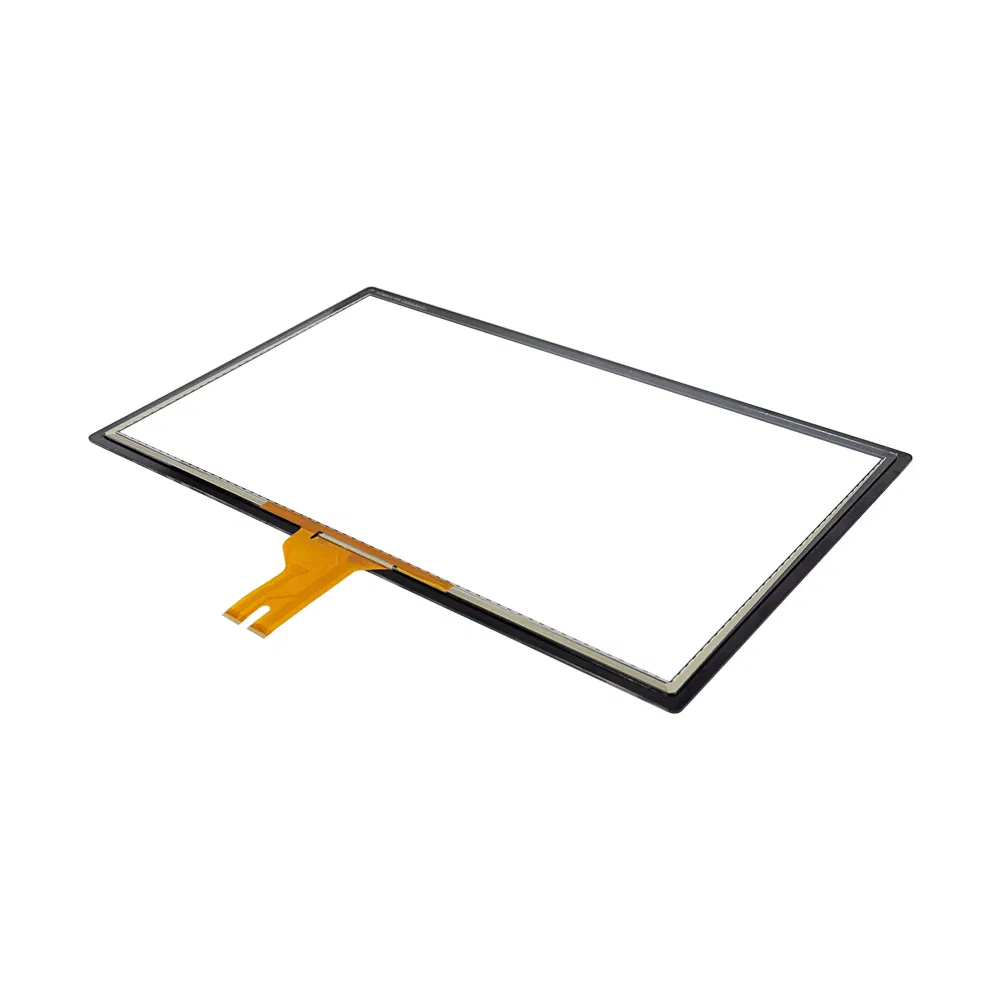

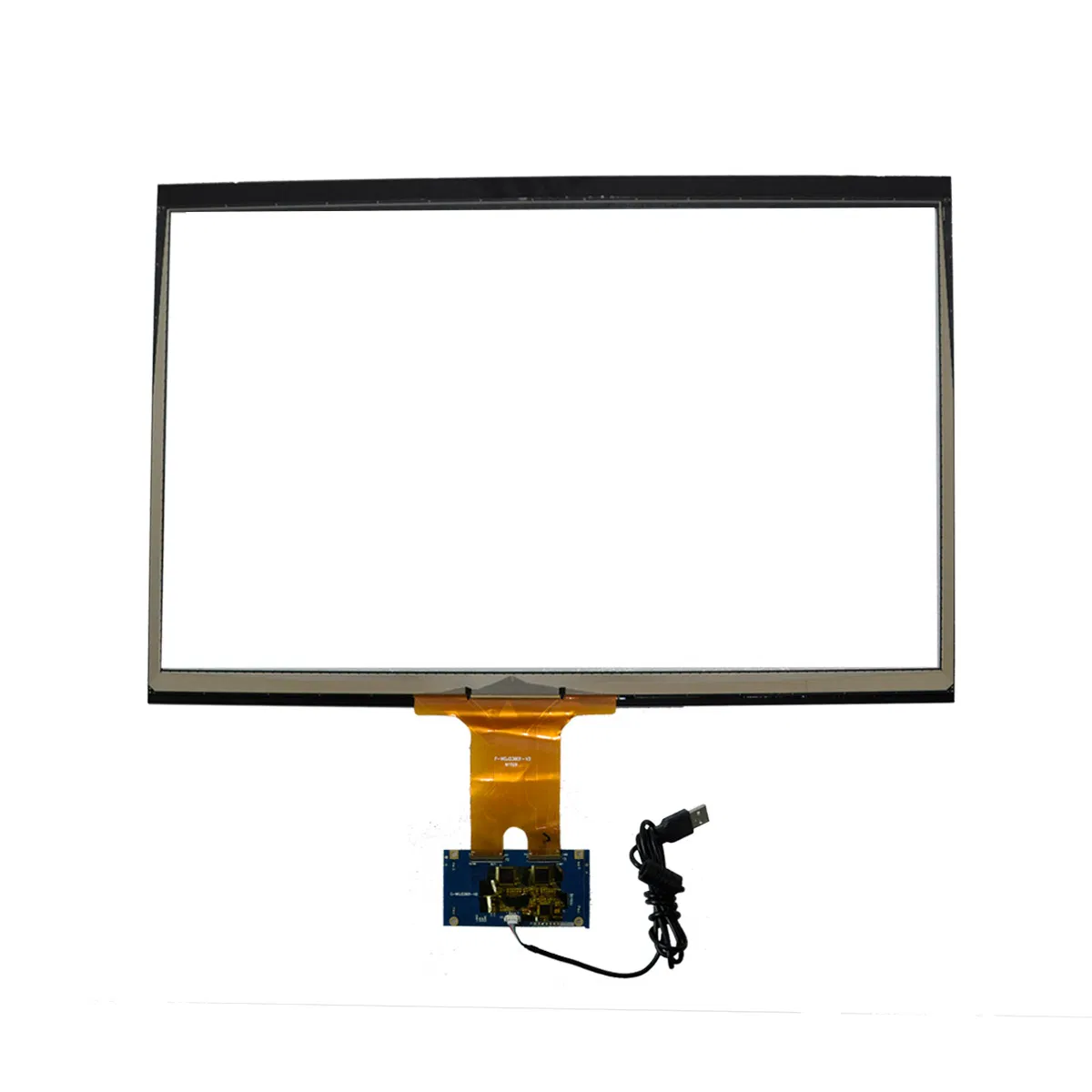

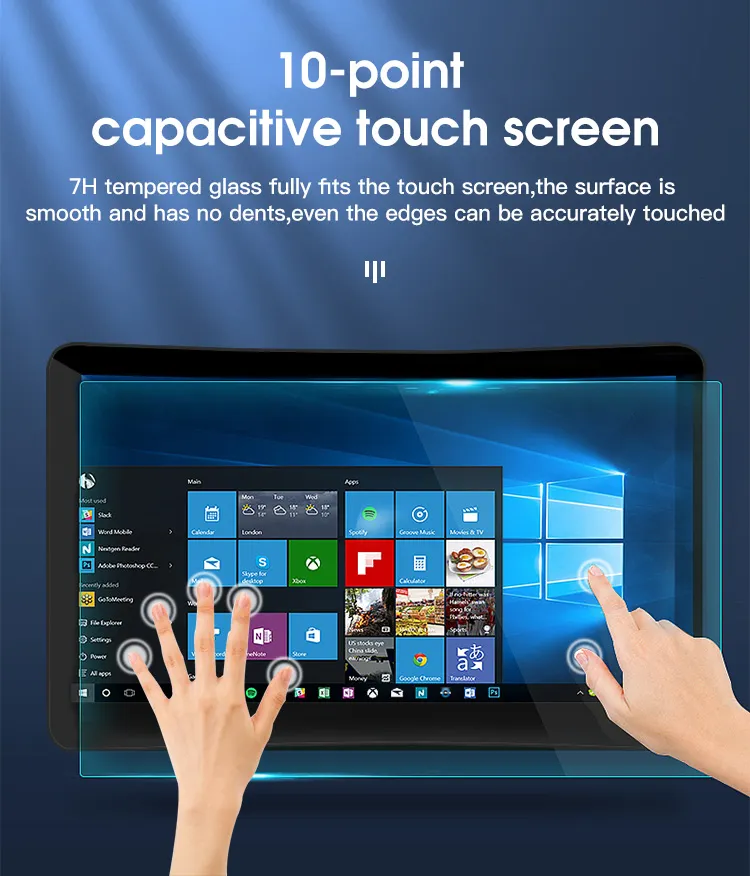

23.6 Inch Pcap Touch Screen 10 Point Touch Panel

1 / 5

23.6 Inch Pcap Touch Screen 10 Point Touch Panel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:CPI236T00-3K-C01

Application:Game Entertainment System

Screen Type:Capacitive

Technology:Pcap Touch Screen

Resolution:4096*4096

Multi-Touch:10 Touch Points

Production Capacity:500/Pieces a Day

Origin:China

Product Description

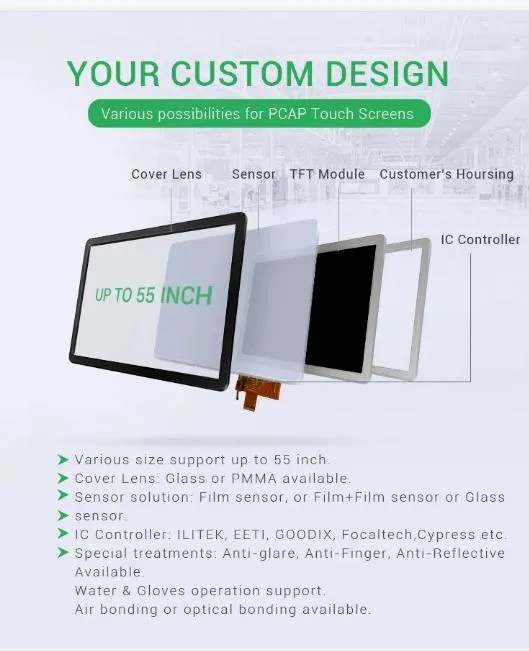

PCAP (Projected Capacitive) touch screen detects the touch position through the change in capacitance between electrodes. When a finger or conductive stylus approaches the surface, it distorts the local electrostatic field, pinpointing the exact position.

🚀 5" - 110" Custom made support
🖐️ 10 Points Multi-touch (USB/RS232/IIC)
🛡️ 1.8mm-8mm Tempered Vandal-proof Glass
💧 Outdoor Industrial Waterproof
💻 Windows / Linux / Android / Mac OS / Raspberry pi

Technical Specifications

Technical Specification
Type	Projected touch panel
Interface	USB
Transmittance	>90%
Surface Hardness	≥6H
Input Voltage	5V
Working Temp	-10~+60ºC, 20~85% RH
Cover Lens Specification
Ball Drop Test	130g±2g, 35cm, No damage
Pressure Value	400 ~500 mPA above 6u

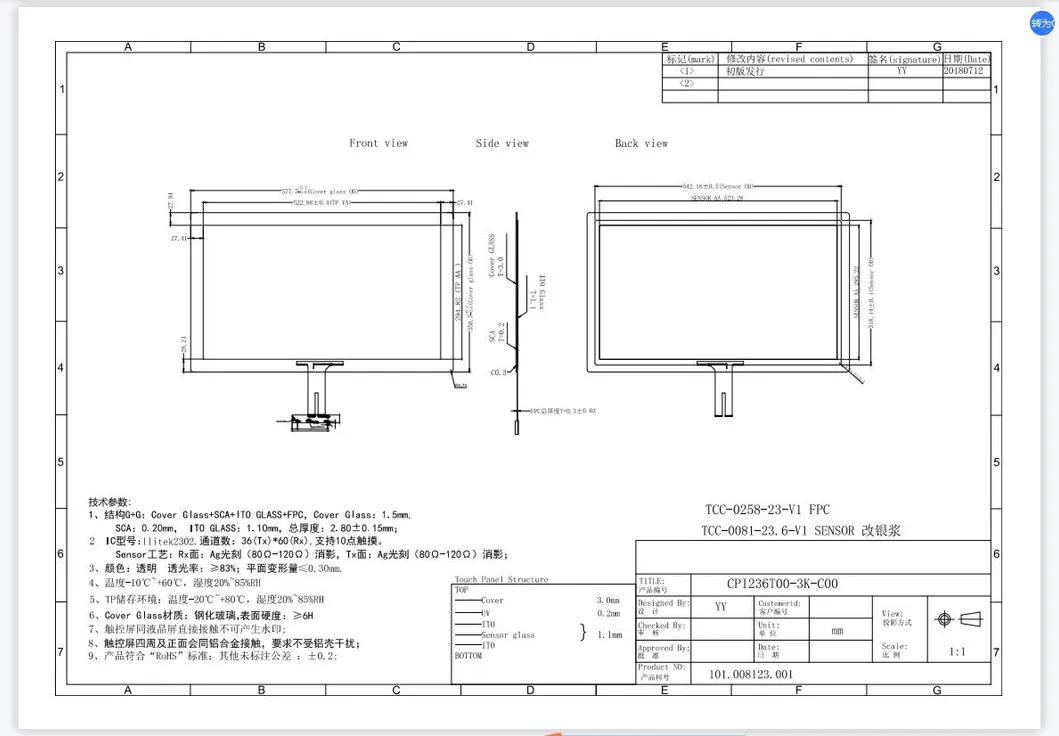

Related Products & Dimensions

Size	Model	IC	Interface	Active Area
10.1"	CPI101T00-3K-C00	ILI2511	USB	217.96x136.60
15.6"	CPI156T00-3K-C00	ILI2510	USB	343.70x193.00
21.5"	CPI215T00-3K-C00	ILI2510	USB	477.60x269.10
23.6"	CPI236T00-3K-C01	ILI2510	USB	522.88*294.82

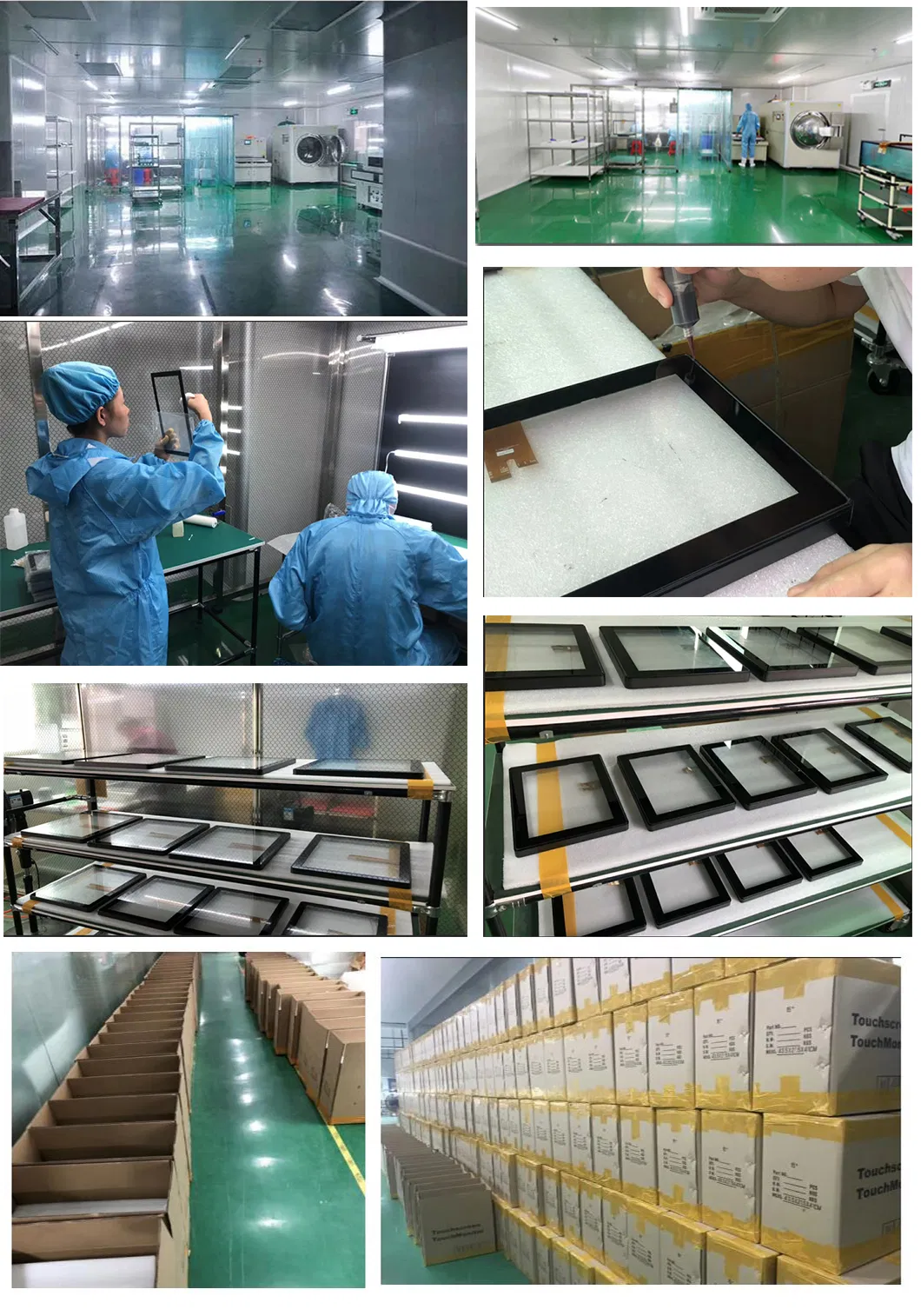

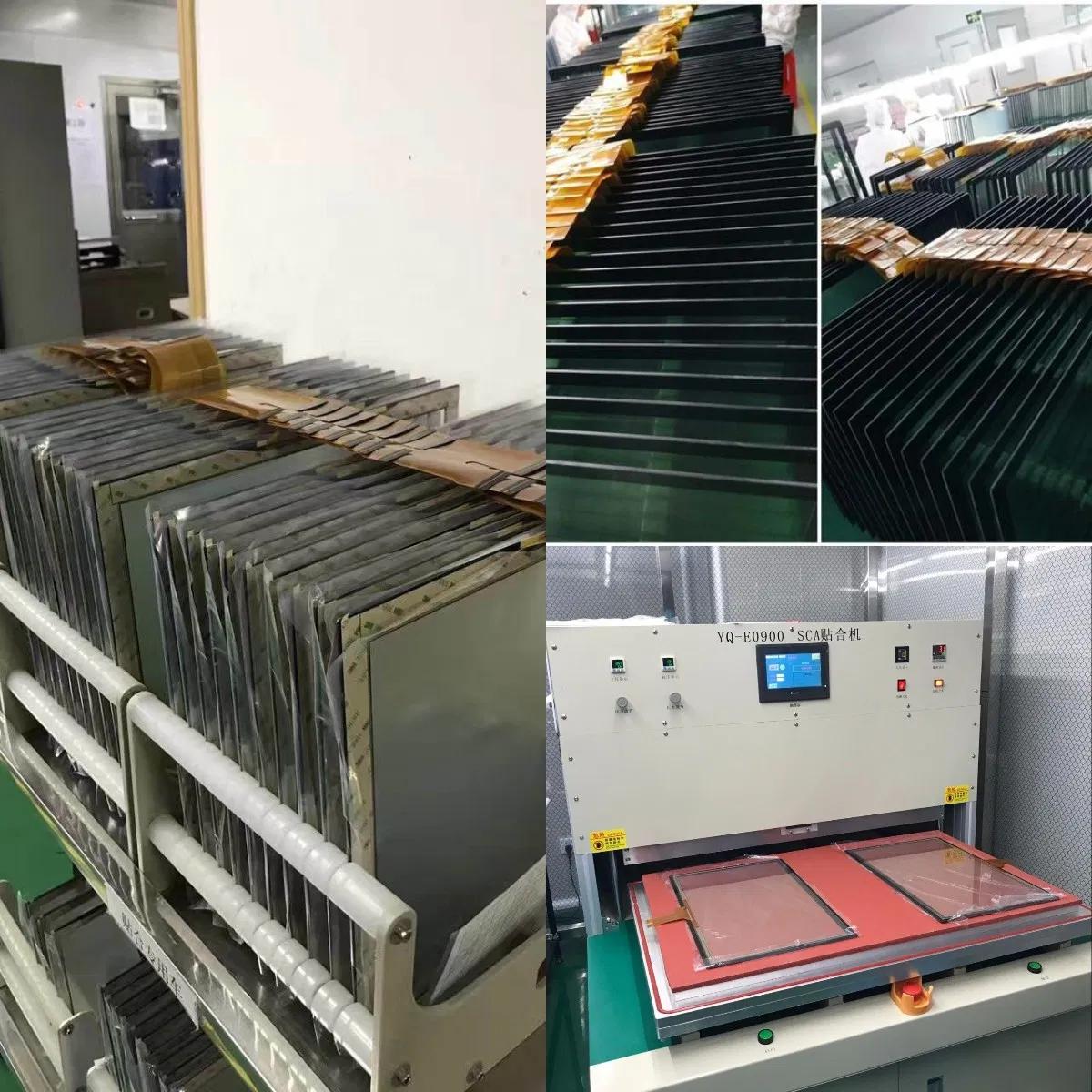

Factory Strengths

A high-tech enterprise mainly specialized in researching, manufacturing, and providing professional touch solutions for Gaming, POS, Medical equipment, and Kiosks.

Why Choose Us?
✅ 10 Years Professional Experience
✅ 1 Year Warranty for Touchscreens
✅ Fast Lead Time (< 2 days for regular types)
✅ CE, FCC, RoHS, ISO9001 Certified

Frequently Asked Questions

Q1: How many touch points does the PCAP screen support?

A: It supports up to 10 multi-touch points, providing a smooth and responsive experience for various applications.

Q2: Which operating systems are compatible?

A: Our touch panels are compatible with Windows 7/8/10, Android, Linux, Mac OS, and Raspberry Pi.

Q3: Can the glass be customized?

A: Yes, we offer options for tempered glass ranging from 1.8mm to 8mm, with optional Anti-Glare (AG) and vandal-proof treatments.

Q4: What is the primary technology used?

A: We use Projected Capacitive (PCAP) technology, which offers high durability, excellent optical performance, and high transmissivity.

Q5: Is it suitable for outdoor use?

A: Yes, we provide industrial-grade waterproof and sunlight-readable solutions suitable for both indoor and outdoor environments.

Q6: What certifications do your products have?

A: Our products are certified with CE, FCC, RoHS, ISO9001, and ISO14001 international standards.
